wholesale china factories RF series straight-return type return oil filter YBR0060R*BN/HC for hydraulic oil filtration

  • >=20 Pieces
    $50.00
Model Number:
RF YBR0060R*BN/HC
Aperture:
standard
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Yinbeier
Usage:
Liquid Filter
Type:
Filter Elements, Return filter
Material:
Glass Fiber, Stainless Steel 304/316 weir mesh
Hole Shape:
Round
Filter Rating:
99%
Thickness:
standard
Length:
standard
Width:
standard
After-sales Service Provided:
No overseas service provided
Application:
Liquids filtration
Product name:
High quality RF series straight-return type return oil filter
Name:
RFA Filters
Function:
Removing Impurities
filtration rating:
1,3,5,10,20,30
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. paper packing or plastic packing
2. carton packing
3. wooden packing
or acrroding to customer requirements.
Port
Tianjin
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Video Description

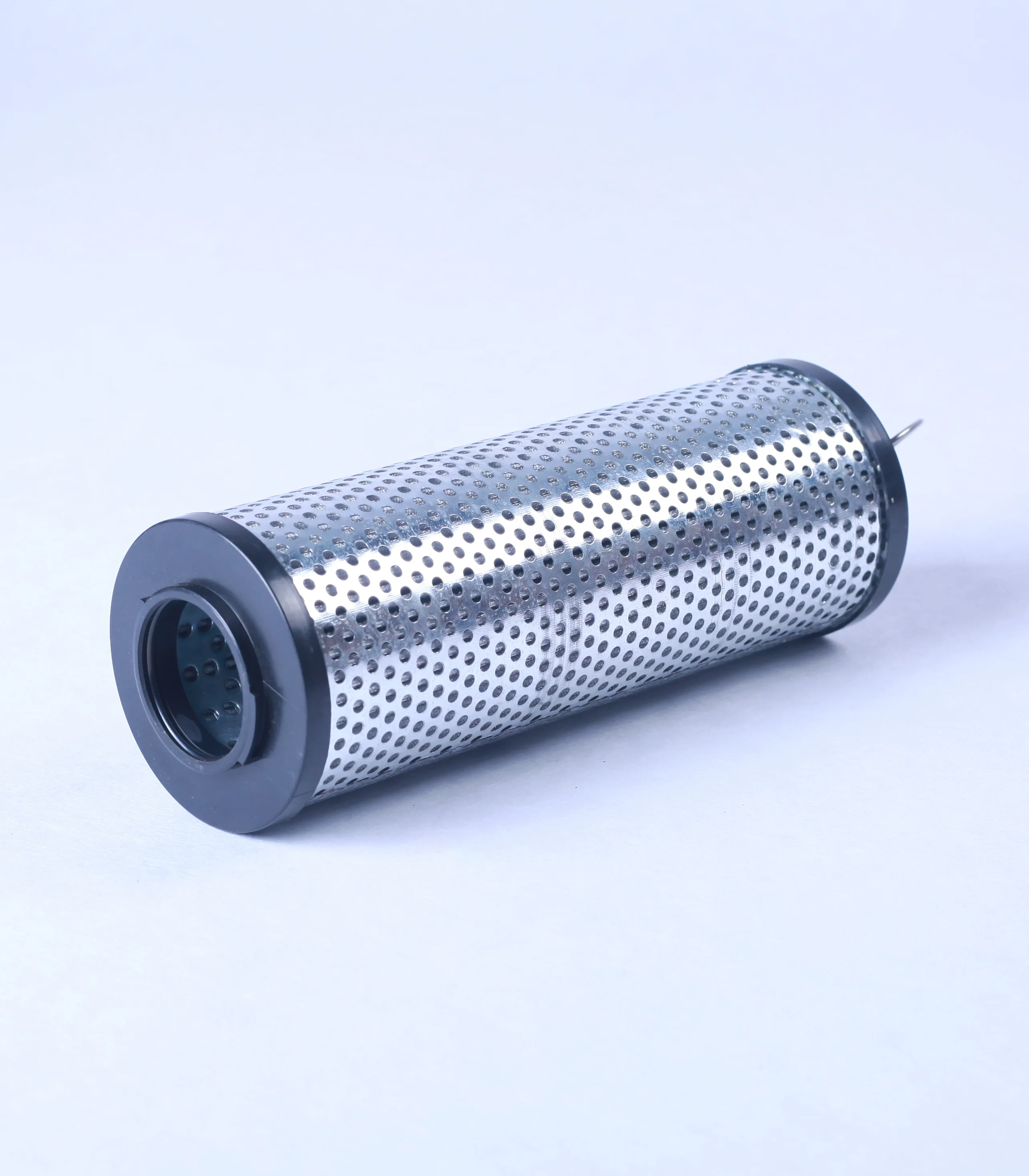

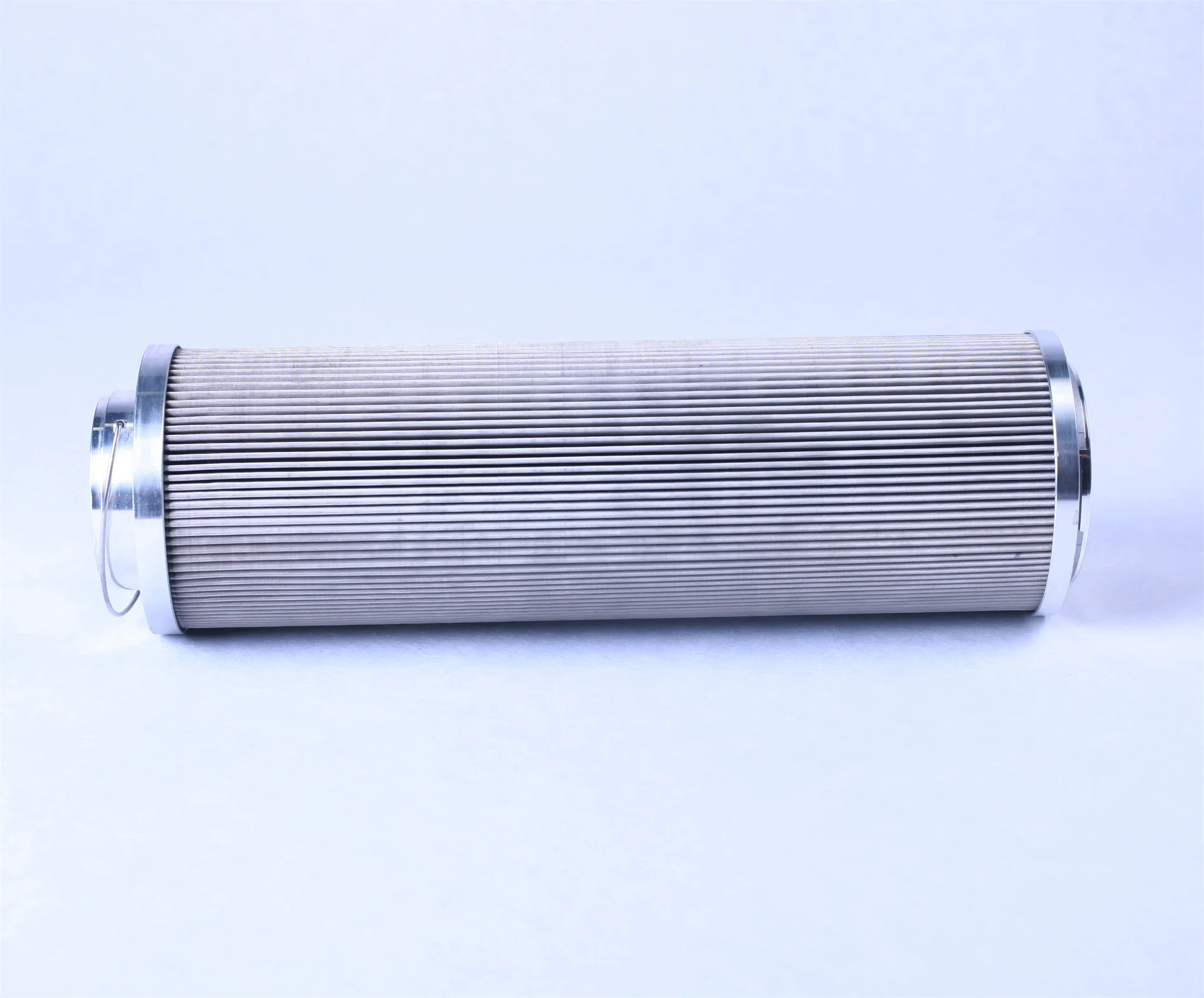

Product details

This filter is used to finely filtrate return oil from the hydraulic system and filtrate metal particles generated due to wear of the hydraulic system elements, seal rubber impurities and other contaminants, so as to keep oil from the oil return tank clean. 1. This filter can be directly mounted on the tank cover plate, or can be mounted by using pipes. 2. This filter is provided with a filter contamination and blockage indicator and bypass valve so as to improve the reliability of alternative hydraulic flow. When the filter is blocked by contaminants or the fluid temperature of the system is too low and the oil inlet pressure is 0.35MPa under the influences of flow fluctuation and other factors, the indicator sends a signal. At this time, you shall immediately replace the filter or raise the temperature . If you cannot stop it for troubleshooting,the bypass valve on the filter will automatically open (pressure: 04Mpa). 3. The filter is made of glass fiber, and has advantages such as high filtration precision, high oil flow capacity, low initial pressure loss and high dirt holding capacity, and its filtration precision is calibrated based on the absolute filtration precision. The filtration efficiency n reaches 99.5% or higher when the filtration ratio β3, 5, 10, 20 is equal to or larger than 200, up to ISO standards.5% or higher when the filtration ratio β3, 5, 10, 20 is equal to or larger than 200, up to ISO standards.5% or higher when the filtration ratio β3, 5, 10, 20 is equal to or larger than 200, up to ISO standards.

Filter type
Nominal flow rate
(L/min)
Filtration precision
(μm)
Nominal pressure
(MPa)
Filter model
RF-60×*
60




1

3

5

10

20

30








1
0060R*BN/HC
RF-110×*
110
0110R*BN/HC
RF-160×*
160
0160R*BN/HC
RF-240×*
240
0240R*BN/HC
RF-330×*
330
0330R*BN/HC
RF-500×*
500
0500R*BN/HC
RF-660×*
660
0660R*BN/HC
RF-850×*
850
0850R*BN/HC
RF-950×*
950
0950R*BN/HC
RF-1300×*
1300
1300R*BN/HC
RF-1700×*
1700
1700R*BN/HC
RF-2200×*
2200
2200R*BN/HC
RF-2600×*
2600
2600R*BN/HC

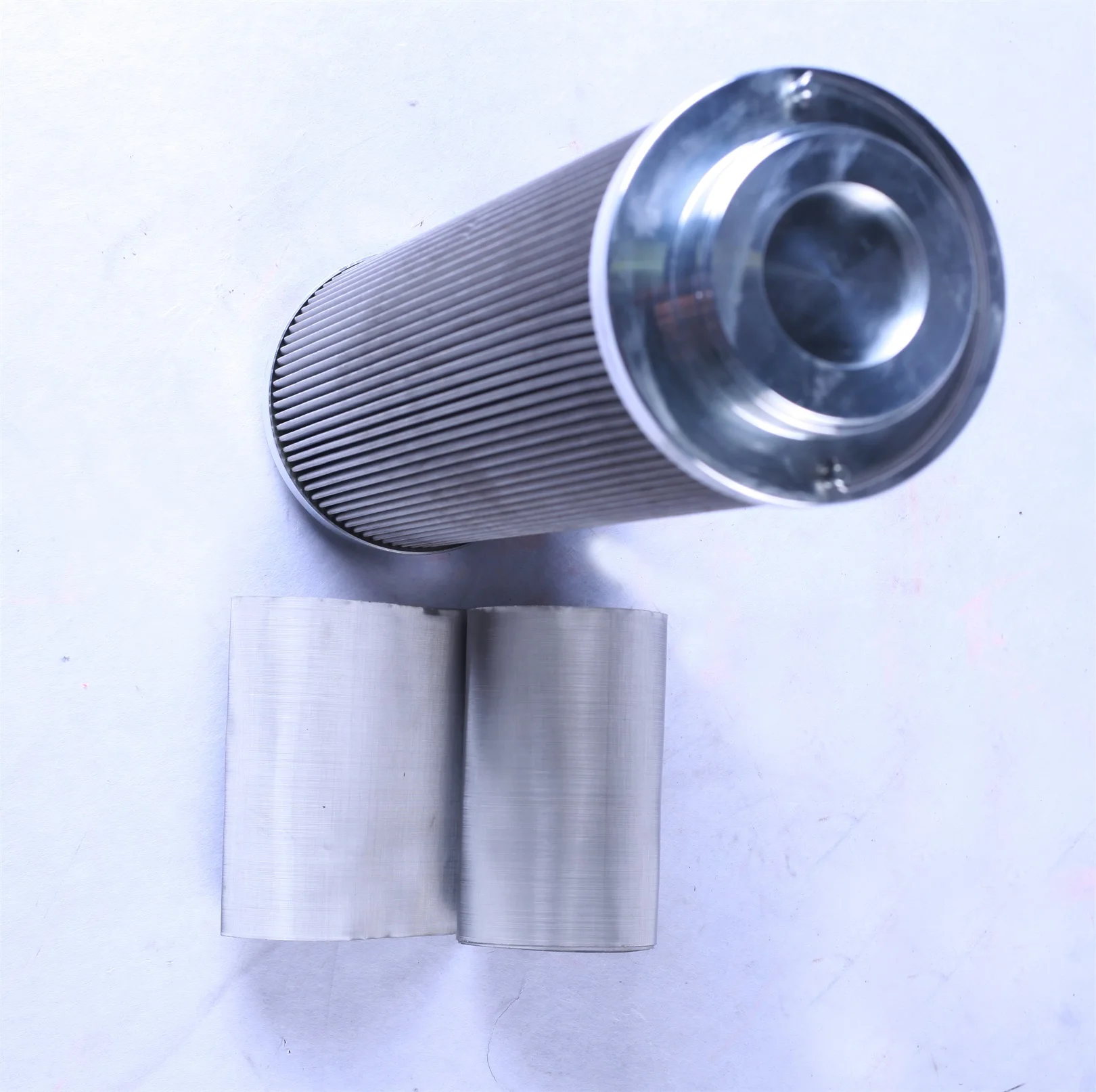

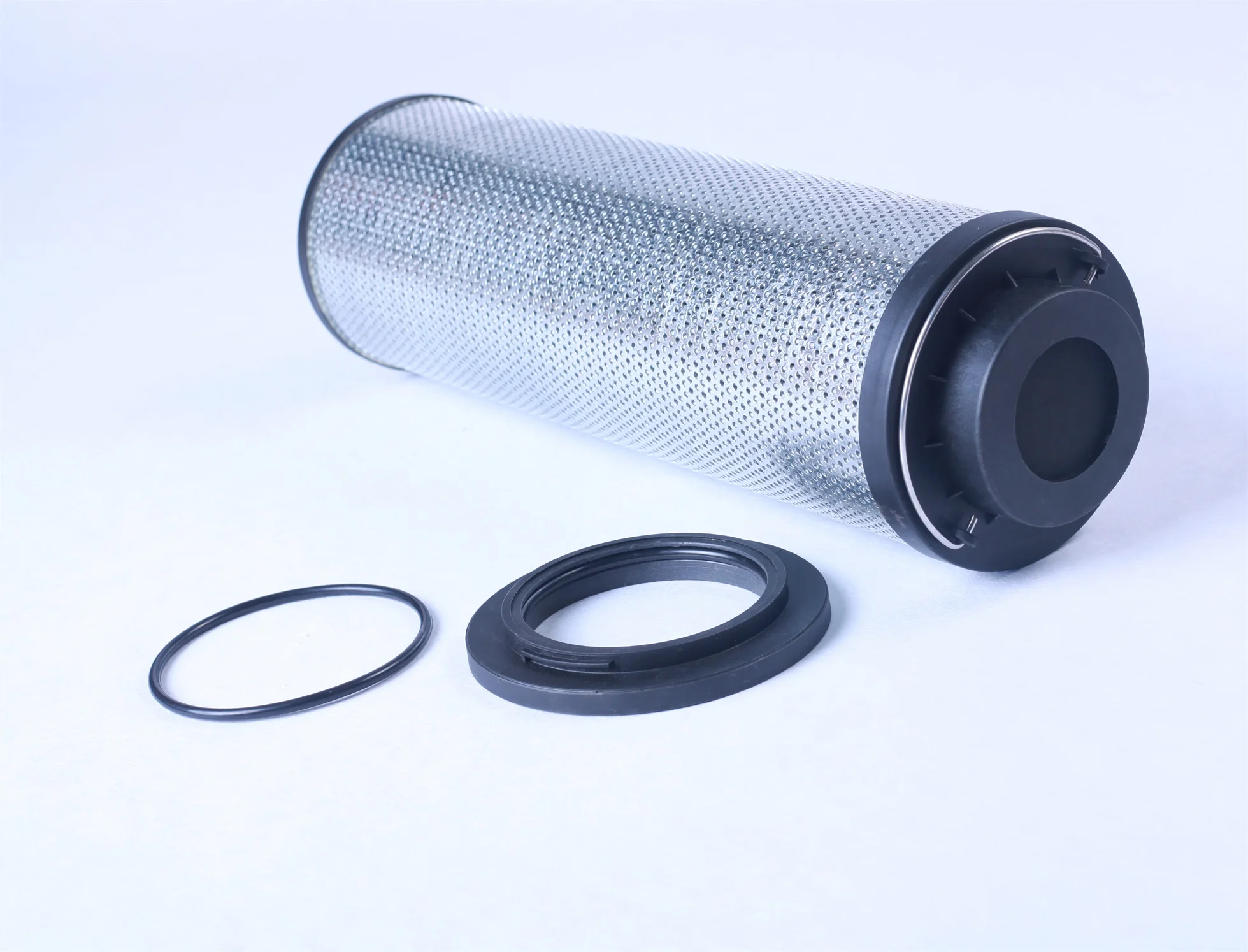

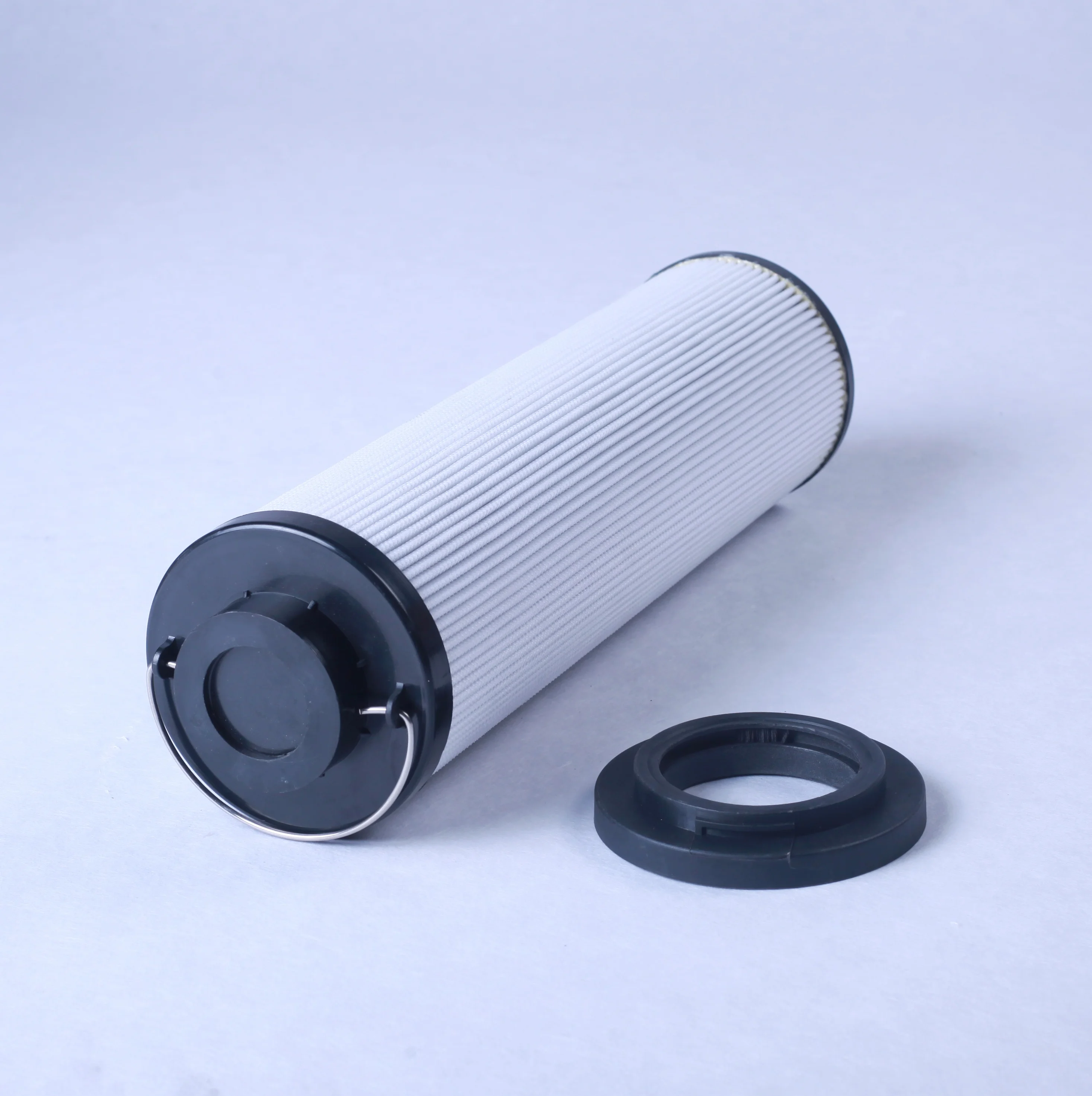

Our products
Packaging & Shipping

1 . Paper packing or plastic packing .
2. Carton packing .
3. Wooden packing .
Or acrroding to customer requirements.

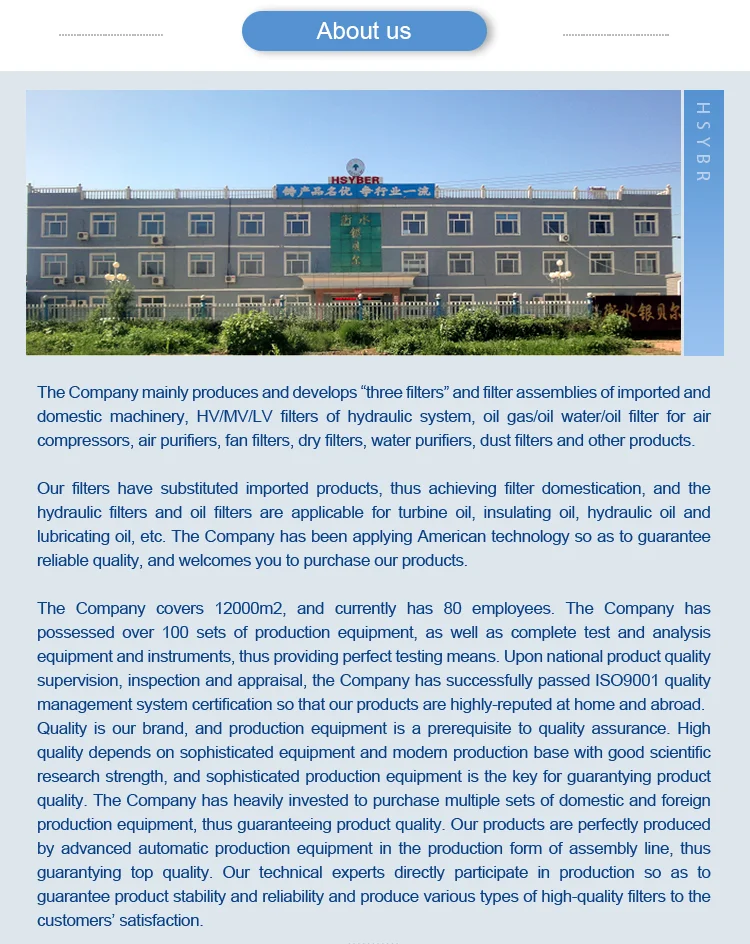

About us
FAQ

Question1 : Did you accept products customization? Do they need mould fee?

Answer :Yes, we accept products customization. Need mould fee, because products usually need extra mould cost. But we can return the mould fee when you reach a specific quantity.

Question2 : Can we get free samples?

Answer : The sample expense and freight expense will be borne by the buyers, and will be returned in the following orders.

Question3 : How long is the normal production period for a 20-foot shipping container?

Answer : According to the current productive capacity, usually needs 3-14 days from producing to delivery.

Question4 : What is the type of payment?

Answer: Usually you should prepay 30% of the total amount. The balance should be paid before delivery.

Question5 : How to guarantee the high quality?

Answer : We have testing department to make sure quality of every product, appearance and pressure test are good.
